HIKVISION AX PRO 64 ZONE WIRELESS ALARM KIT (DS-PWA64-Kit-WE)

DS-PWA64-Kit-WE

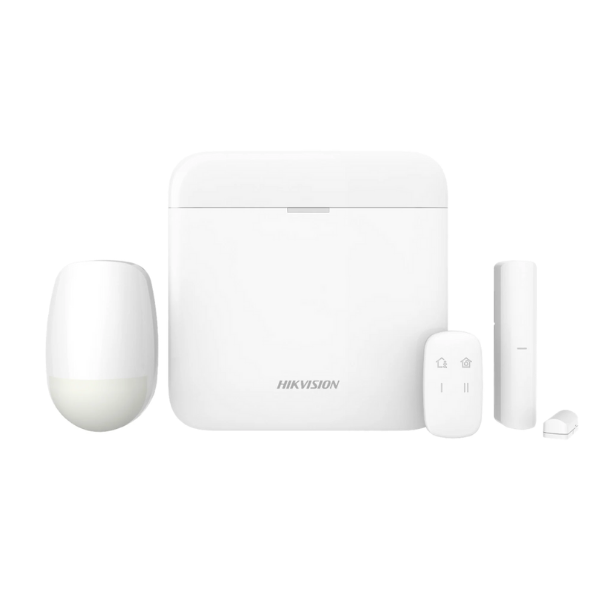

KIT INCLUDES:

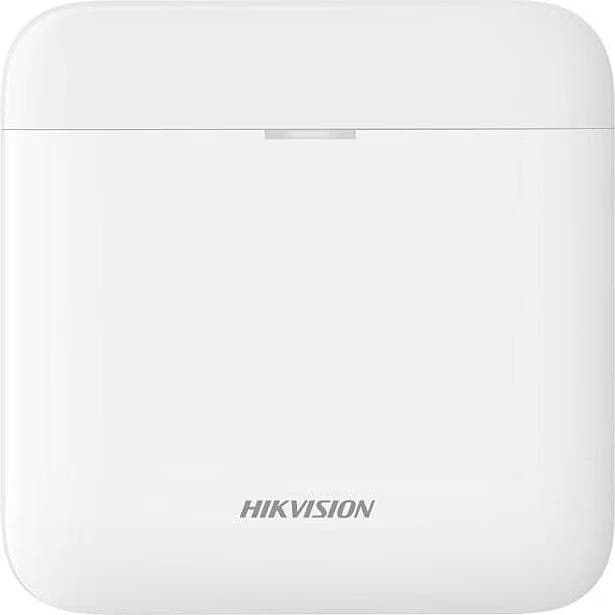

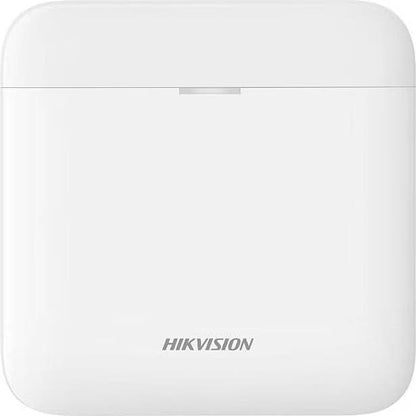

1 x Hikvision AX PRO Alarm pannel

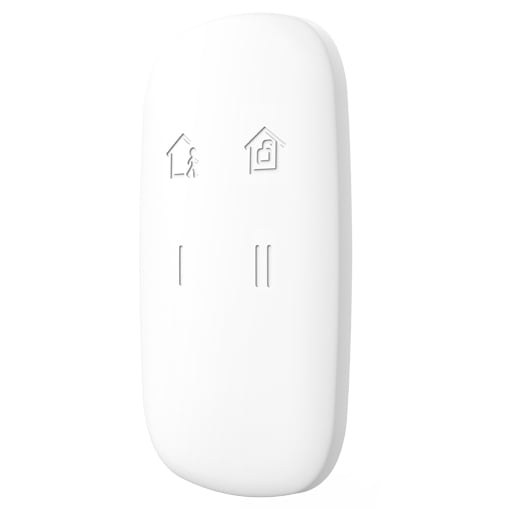

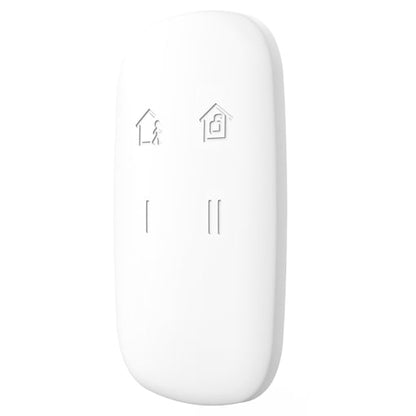

1 x Wireless keyfob

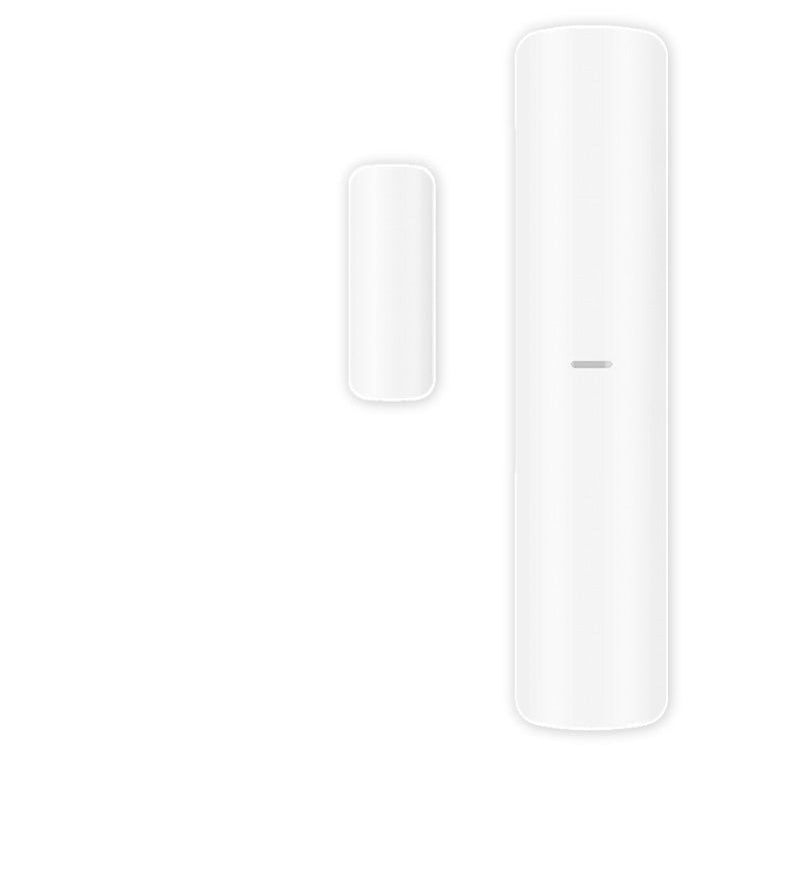

1 x Wireless door contact

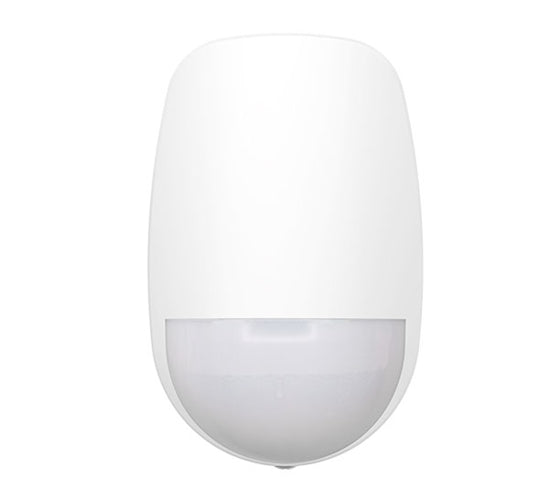

1 x Wireless PIR Detector



Specification

Software features

Tag

32

Area

16

Zones

64 (up to 48 PIRCAMs)

Installer

1

User

30

Admin

1

Voice Prompt

Supported

Loudspeaker built in

Supported

Memory Log stored

5000

Programming tools

Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud

Firmware upgrade

APP/Web Portal

Arm modes

Away/Stay

Automatic Arm/Disarm Timers

Supported

Forced Arming with Open Zones

Supported

Diagnostics via the APP or Web

Supported

ARC protocol

SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK) Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685) Supports video verification and remote control

User APP for operating

Supported

Installer APP for programming

Supported

Web server for maintenance (offline configuration)

Supported

Hardware features

RS232 output

Supported

SIM slot

Single

RF transmission

RF Frequency

868Mhz

Wireless Security

Frequency Hoping 128 AES Encryption

GPRS on board

Supported

Display

LEDs Status

Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power

Electrical characteristics

Power supply

Built in power supply

Battery type

Built in on board Battery Li

Battery life span

Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)

Wireless transmission

Wired network

Supported

Wi-Fi Standard

Supported

General

Operation temperature

-10 °C to +55 °C

Shell material

Plastic

Dimension(WxHxD)

170.0 mm (6.7") x 170.0 (6.7") mm x 38.6 mm (1.5")

557.5 g(19.7 oz)

Color

White
